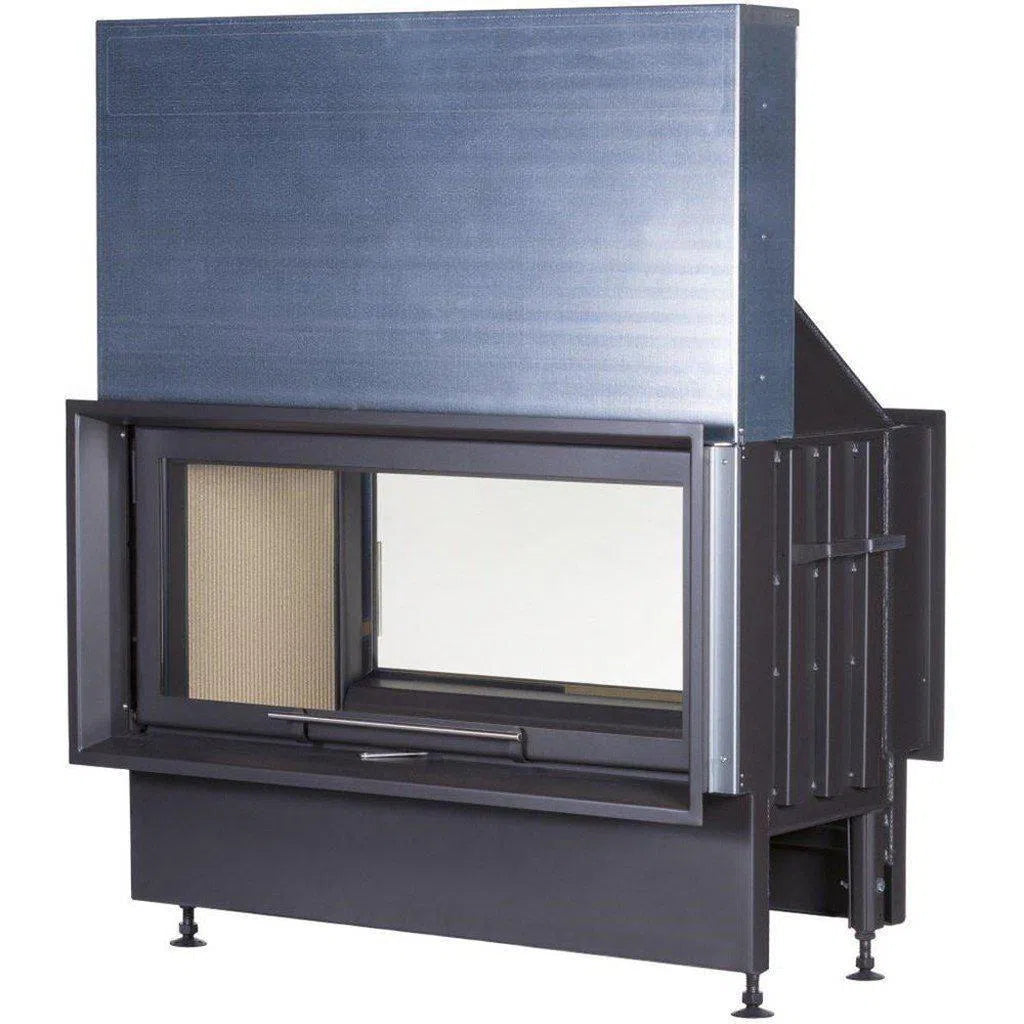

KOBOK Mt Blanc Panorama 1170 Tunnel Wood Fireplace with One Vertical Door

16kW

Nominal Power Output

240-450m2

Heatable Area

5kg/h

Hourly Consumption

Extra large glass area  for unlimited view of the fire.  1 x Vertical door (VD) 1 x standard door (SD) for practical operation & seamless installation. Specially designed tunnel unit for indoor installations.

Features

• Deep focus for aesthetic burning
• Primary and Secondary Air / Three-Stage Combustion
• Hygienically safe ecological varnish
• Possibility of air supply for combustion
  from external environment
• Height-adjustable position by means of set screws
• High glass purity when burning
• Preparation for automatic combustion control
• All-sand construction of the fireplace insert
  before surface treatment
• Automatic combustion control possible

Specifications

Door Dimensions (w h) : 1060/480mm

Overall Dimensions (w h d) : 1170/1500/545mm

Weight: 325-390kg

Flue Outlet: 9"

Air Supply Duct: 150mm

Minimum Hearth Dimensions (w d) : 1500/750mm

Log Length/Diameter: 60/445cm

Average Wood Consumption: 5kg/hr

Average Efficiency EU: 80%

Nominal Heat Output: 16 kW

Maximum Heat Output: 30 kW

Door Opening System: Lift

Manufacturer: Kobok

Flue Options

9" Zero Clearance Flue Kit

Downloads

PRODUCT BROCHURE (PDF)

INSTALLATION & OPERATING MANUAL (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
