    • settings SKU: MAFMTBLANCPANORAMA1170/500TUNNELALFRESCOVERTICALDOOR

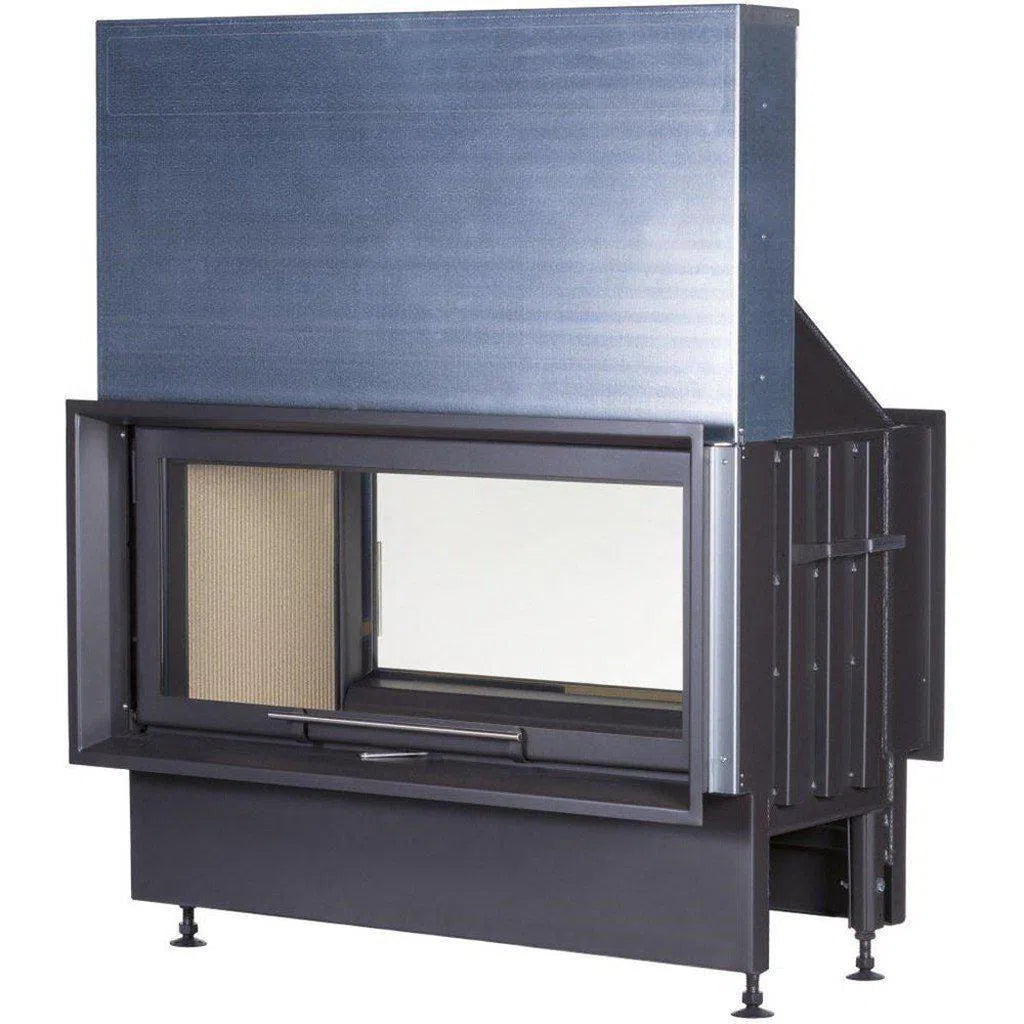

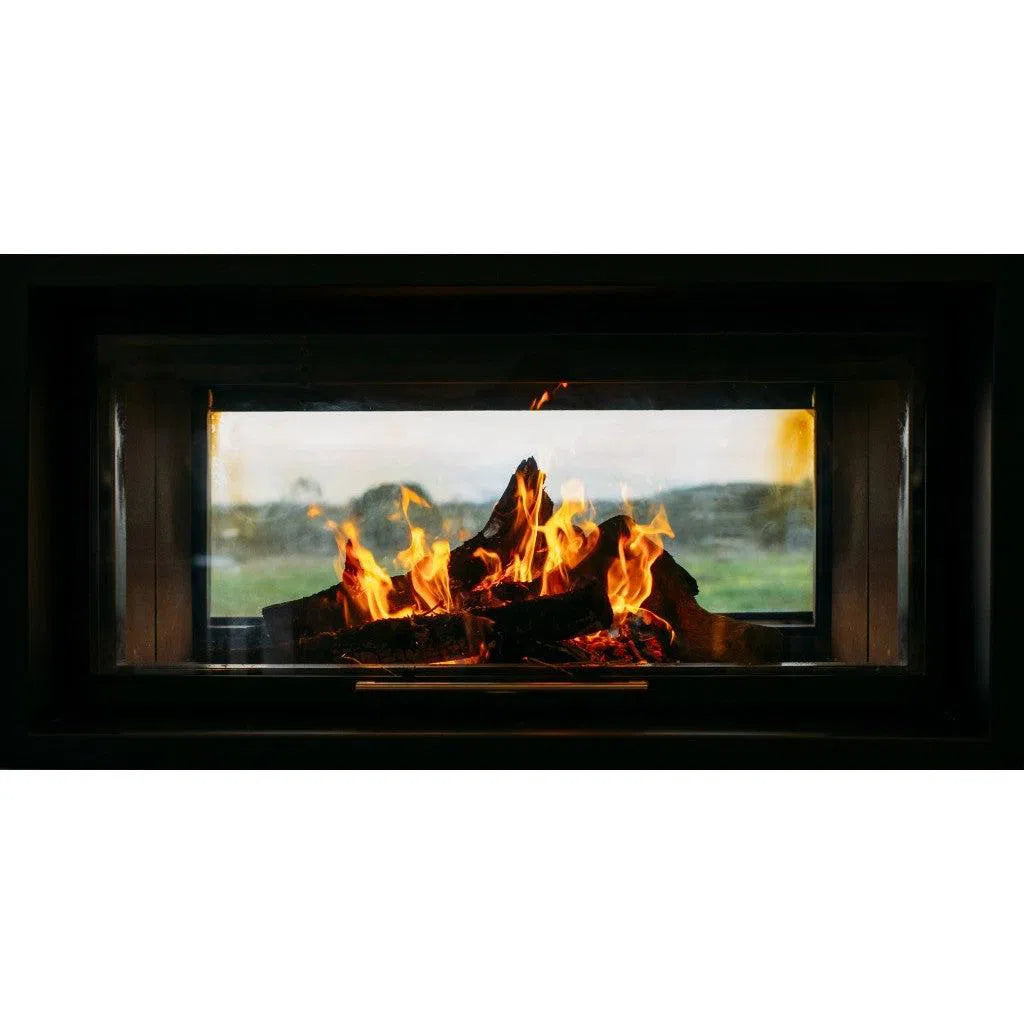

    KOBOK Mt Blanc Panorama 1170 Tunnel Alfresco Wood Fireplace

    $16,915.00
    Unit price  per

    16kW

    Nominal Power Output

    240-450m2

    Heatable Area

    5kg/h

    Hourly Consumption

    Specially designed tunnel unit for indoor/outdoor style installations. Cutting edge technology ensures most of the heat is directed inwards, outside surfaces are weather proofed and equipped with lock mechanism.

    Features

    • Deep focus for aesthetic burning
    • Primary and Secondary Air / Three-Stage Combustion
    • Hygienically safe ecological varnish
    • Possibility of air supply for combustion
      from external environment
    • Height-adjustable position by means of set screws
    • High glass purity when burning
    • Preparation for automatic combustion control
    • All-sand construction of the fireplace insert
      before surface treatment
    • Automatic combustion control possible

    Specifications

    Door Dimensions (w h) : 1060/480mm

    Overall Dimensions (w h d) : 1170/1500/545mm

    Weight: 325-390kg

    Flue Outlet: 9"

    Air Supply Duct: 150mm

    Minimum Hearth Dimensions (w d) : 1500/750mm

    Log Length/Diameter: 60/445cm

    Average Wood Consumption: 5kg/hr

    Average Efficiency EU: 80%

    Nominal Heat Output: 16 kW

    Maximum Heat Output: 30 kW

    Door Opening System: Lift

    Manufacturer: Kobok

    Flue Options

    9" Standard Insulated Room Sealed 5m Flue Kit

    Downloads

    PRODUCT BROCHURE (PDF)

    INSTALLATION & OPERATING MANUAL (PDF)

    Installation

    Need someone to install your fireplace? Find out how we can help.

    Flueing and Accessories

    • Flueing or accessories are not included in the price
    • Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
