    • settings SKU: MAFMTBLANCGRANDDESIGN1370/500VD

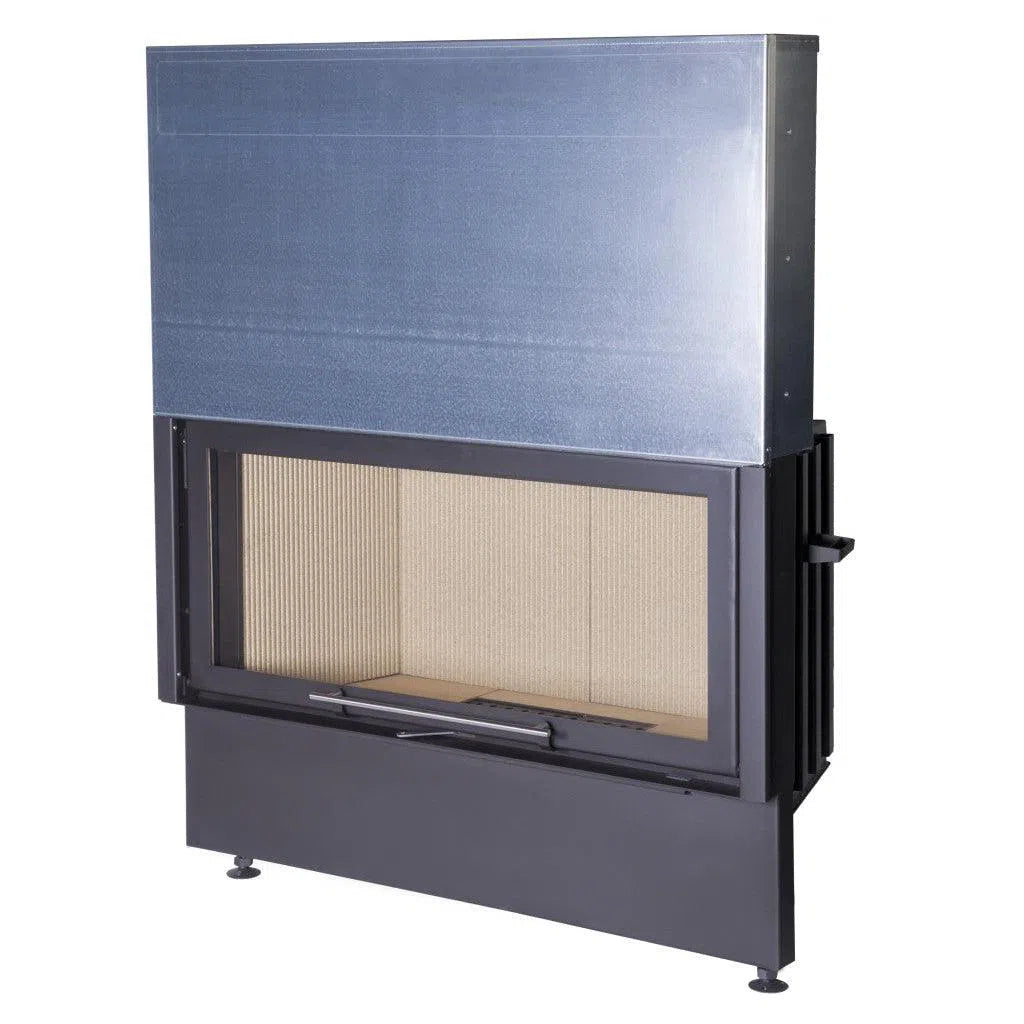

    KOBOK Mt Blanc Grand Design 1370 Wood Fireplace with Vertical Door

    $16,830.00
    Unit price  per

    18kW

    Nominal Power Output

    270-525m2

    Heatable Area

    6kg/h

    Hourly Consumption

    Totally unique fireplace inserts grand in design, size and construction. Impressive heat output, yet clean efficient combustion and unparalleled ambience. Suitable for large spaces or special effect applications.

    Features

    • Deep focus for aesthetic burning
    • Primary and Secondary Air / Three-Stage Combustion
    • Hygienically safe ecological varnish
    • Possibility of air supply for combustion
      from external environment
    • Height-adjustable position by means of set screws
    • High glass purity when burning
    • Preparation for automatic combustion control
    • All-sand construction of the fireplace insert
      before surface treatment
    • Automatic combustion control possible

    Specifications

    Door Dimensions (w h) : 1260/480mm

    Overall Dimensions (w h d) : 1370/1500/545mm

    Weight: 440kg

    Flue Outlet: 9"

    Air Supply Duct: 2x125mm

    Minimum Hearth Dimensions (w d) : 1800/850mm

    Log Length/Diameter: 60/45cm

    Average Wood Consumption: 6kg/hr

    Average Efficiency EU: 80%

    Nominal Heat Output: 18kW

    Maximum Heat Output: 35 kW

    Door Opening System: Lift

    Manufacturer: Kobok

    Flue Options

    9" Insulated Room Sealed 4m Flue Kit

    Downloads

    PRODUCT BROCHURE (PDF)

    INSTALLATION & OPERATING MANUAL (PDF)

    Installation

    Need someone to install your fireplace? Find out how we can help.

    Flueing and Accessories

    • Flueing or accessories are not included in the price
    • Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
