15kW
Nominal Power Output
225-375m2
Heatable Area
4.5kg/h
Hourly Consumption

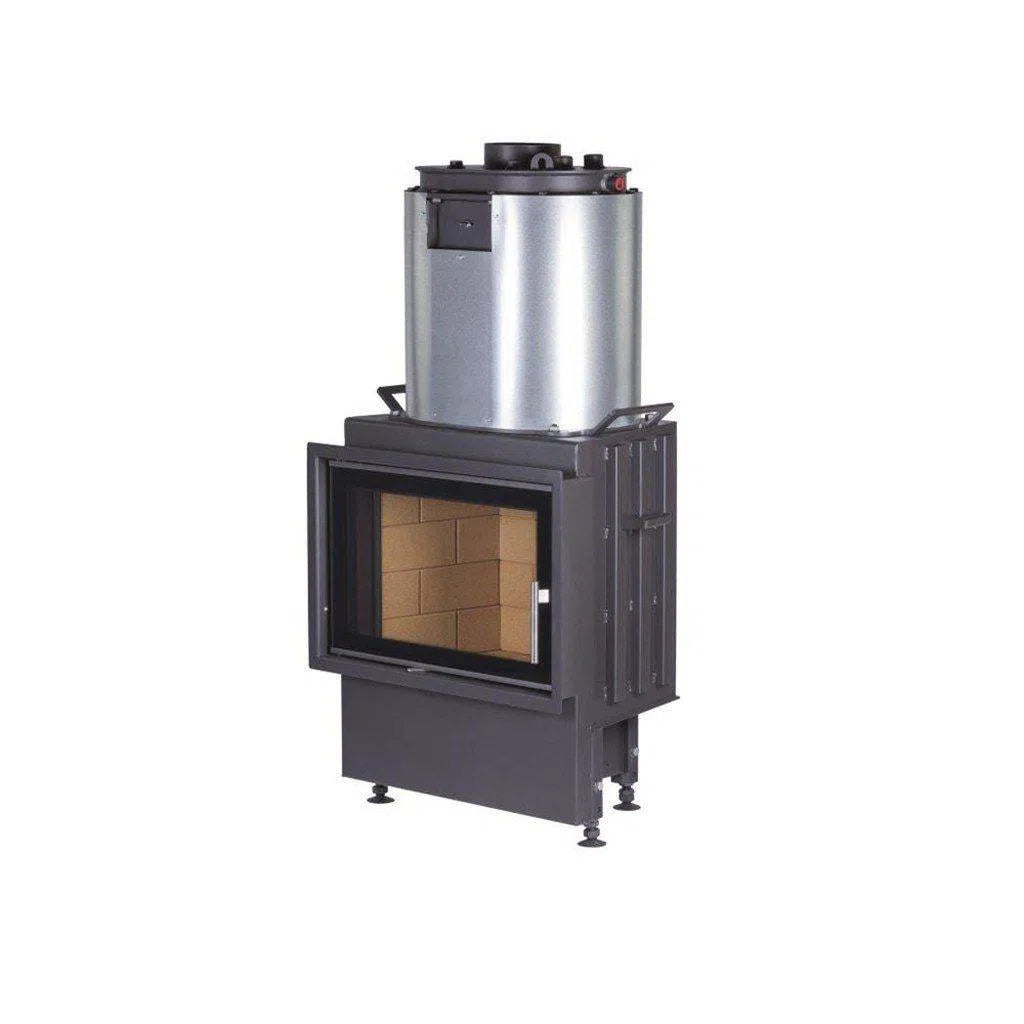

Special application model for hydronic central heating installation. Huge space and water heating capacity, this fireplace represents the pinnacle in heating technology.
Features
- Deep focus for aesthetic burning
- Primary and Secondary Air / Three-Stage Combustion
- Hygienically safe ecological varnish
- Possibility of air supply for combustion
from external environment - Height-adjustable position by means of set screws
- High glass purity when burning
- Preparation for automatic combustion control
- All-sand construction of the fireplace insert
before surface treatment - Automatic combustion control possible
Specifications
Door Dimensions (w h) : 860/480mm
Overall Dimensions (w h d) : 970/1320 - 1550/535mm
Weight: 185-330kg
Flue Outlet: 8"
Air Supply Duct: 125mm
Minimum Hearth Dimensions (w d) : 1300/650mm
Log Length/Diameter: 55/40cm
Average Wood Consumption: 4.5kg/hr
Average Efficiency EU: 80%
Nominal Heat Output: 15kW
Maximum Heat Output: 25 kW
Door Opening System: Vertical
Manufacturer: Kobok
Flue Options
8" Insulated Room Sealed 4m Flue Kit
Downloads
PRODUCT BROCHURE (PDF)
INSTALLATION & OPERATING MANUAL (PDF)
Installation
Need someone to install your fireplace? Find out how we can help.
Flueing and Accessories
- Flueing or accessories are not included in the price
- Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
