Heatstrip Plug-In Remote Controller

The TT-MTR-PLUG has been designed to provide easy remote control timer functionality to wall socket powered HEATSTRIP® heaters. The unit can however be used to remotely operate with timer functionality any device powered by a standard 10A Australian wall socket outlet.

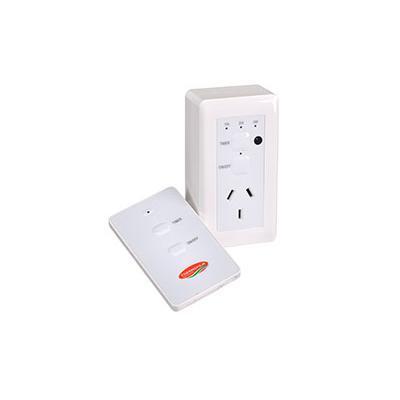

The TT-MTR-PLUG controller consists of a remote control and a plug-in wall socket timer unit to provide easy wireless timer operation.

Features

• The TT-MTR-PLUG provides an easy means of remotely turning on appliances that are normally permanently connected to a standard wall socket.
• An easily selected 1 hour, 2 hour and 4 hour timer func-tion accessible on both the wall unit and remote
• Programmable remote control unit capable of controlling multiple units.

Specifications

Remote battery - CR2025, 3V, Lithium
Remote range - 10m
Wall socket supply - 220V — 240V, 50Hz
Max load - 10A (2400W)
Standby consumption - <1W
Remote frequency - 38kHz IR
Approvals - Australian Standards AS/NZ 3105, 3112, 3100
Packaged dimensions - 140 x 65 x 67mm
