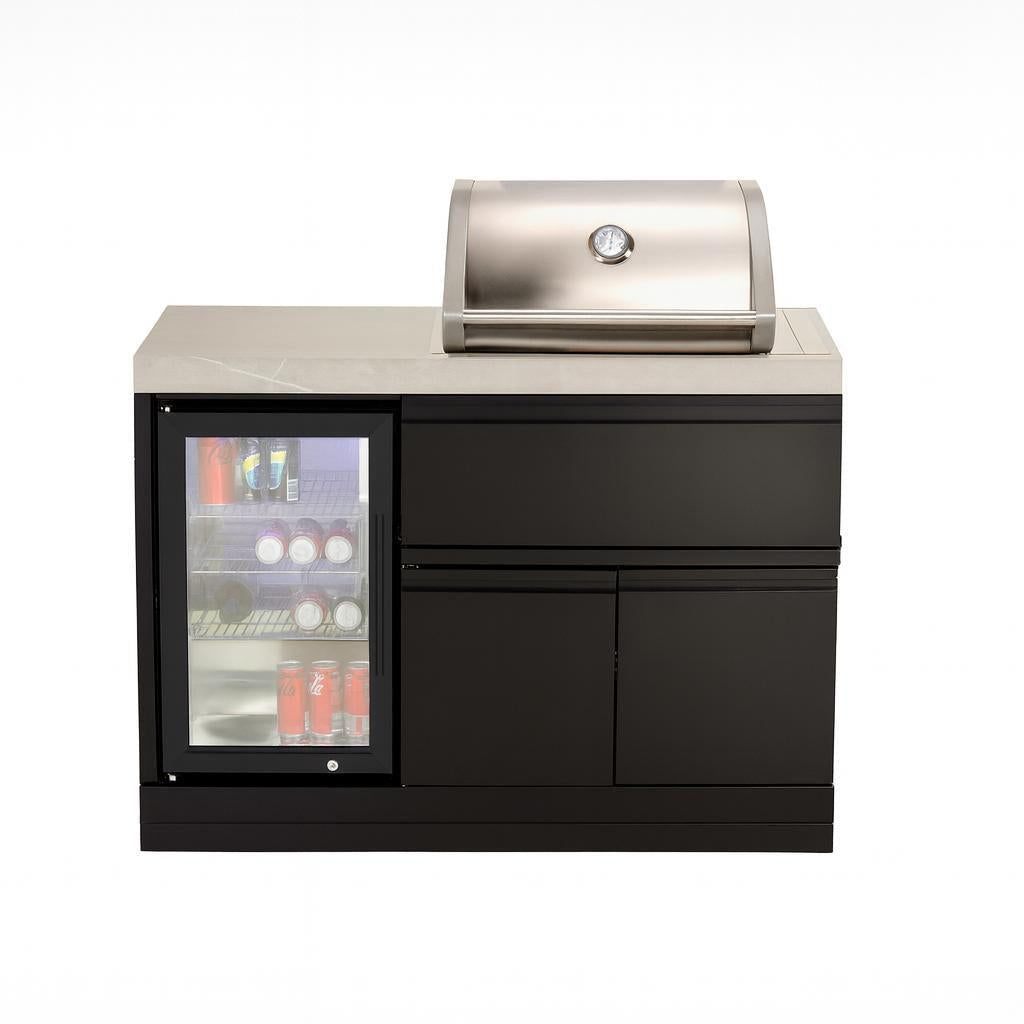

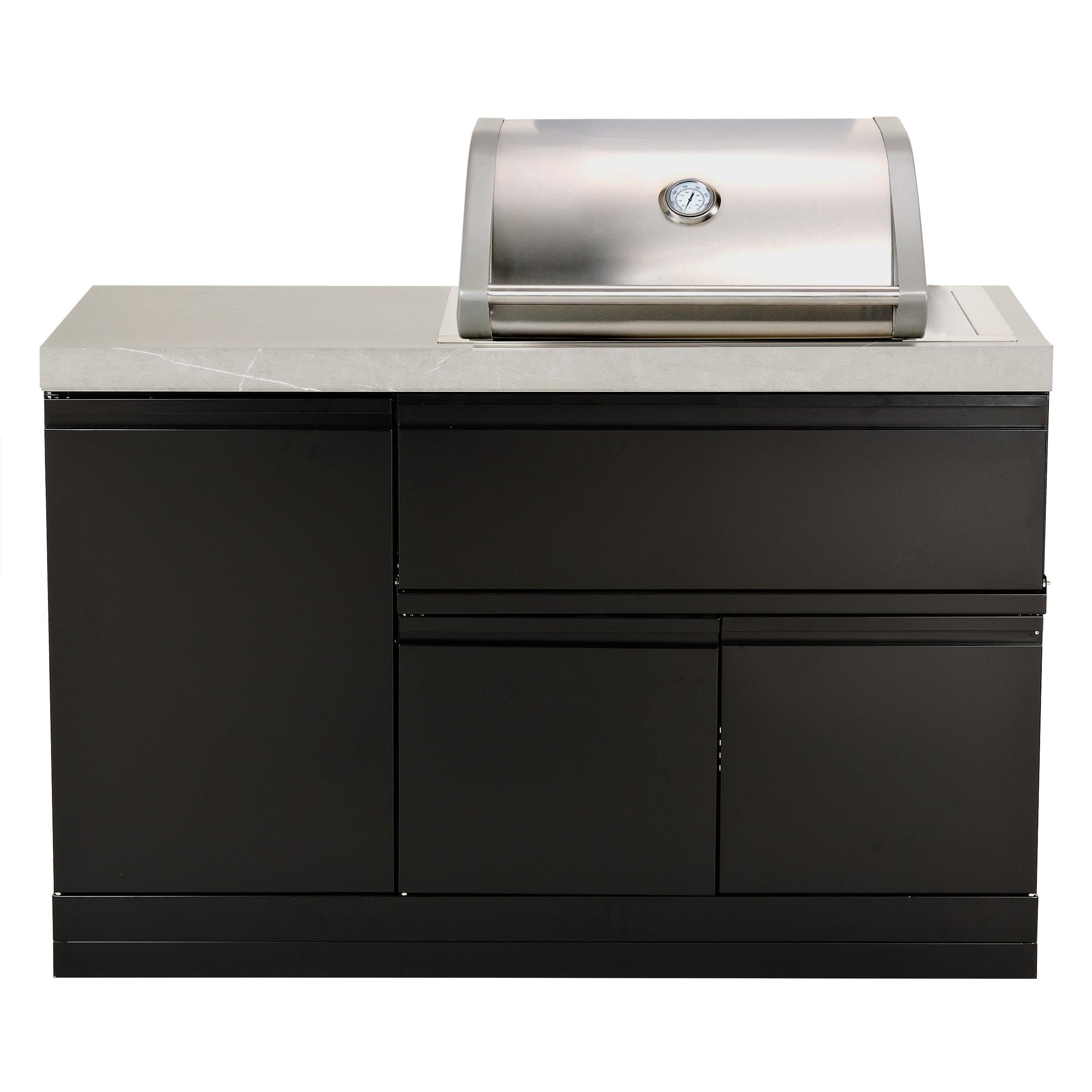

Crossray Mini 2 Burner Gas Outdoor Kitchen

The New CROSSRAY Mini Outdoor Kitchen with the new 2 Burner Drop In gas BBQ elevates outdoor cooking to a whole new level – perfect for your, courtyard or alfresco area. Add a real touch of class with this unique, world class fully-equipped kitchen, that gives you everything you need to prepare the perfect meal for family and friends.

Features

• Complete, compact outdoor kitchen featuring a flush-mounted CROSSRAY 2B gas BBQ, single fridge, with stone benchtop and under-bench storage
• High intensity, high temperature output gas BBQ – in-built so that it is flush with the benchtop.
• Features a high quality sintered stone benchtop (60mm edge) and 63L single fridge with temperature control, triple glazing, blue LED back-lighting and lockable.
• Perfect for smaller backyards & alfresco areas, townhouses, balconies & apartments
• Cabinet includes a drop down top shelf and 2 door storage space underneath (with magnetic closure). Cabinets upgraded to zinc coated/powder coated steel to ensure corrosion protection
• 2B flush mounted BBQ, 2 x 13MJ angled ceramic infrared burners. Flame failure included as standard and meets indoor code
• BBQ with dual level cooking surfaces, double skin hood, 140C to 350C+ temperature output
• Electronic ignition with knobs in a concealed control panel next to the BBQ. Front kickboards included as standard. Side kickboard optional
• Cook with the lid up or down. Plenty of hood height for large meats. Compatible with a rotisserie. NG conversion and top access conversion kits available

Dimensions & Cooking Area

Overall dimensions: 1385mm (W) x 610mm (D) x 1403mm (H)
Cooking area: 3556cm2

Materials

• BBQ: 304 Stainless Steel front and rear body panels
• Die cast aluminum side and end panels
• 2 x surface combustion infrared burners
• Single Fridge, 63L, LED backlights
• Cabinet: Satin black, zinc coated/powder coated steel with double skinned doors
• Benchtop: One-piece sintered stone with 60mm edge

Specifications

• BBQ: Refer to model TCS2-IBL for more detailed information.
• Burner capacity 13MJ/hr each (Total 26 MJ/hr)
• Includes BBQ head only
• 2x BBQ grills and 2-piece SS upper cooking rack included

Optional Accessories

Rotisserie Kit
Natural Gas Conversion Kit
Grill Plate
Side Grill Plate
Hot Plate
Rotisserie Prongs
BBQ Tool Set
Smart Meat Probe
Side Brackets

Downloads

PRODUCT BROCHURE (PDF)

SPEC SHEET (PDF)

BBQ OPERATION MANUAL (PDF)

INBUILT BBQ GUIDE (LPG) (PDF)

INBUILT BBQ GUIDE (NG) (PDF)
