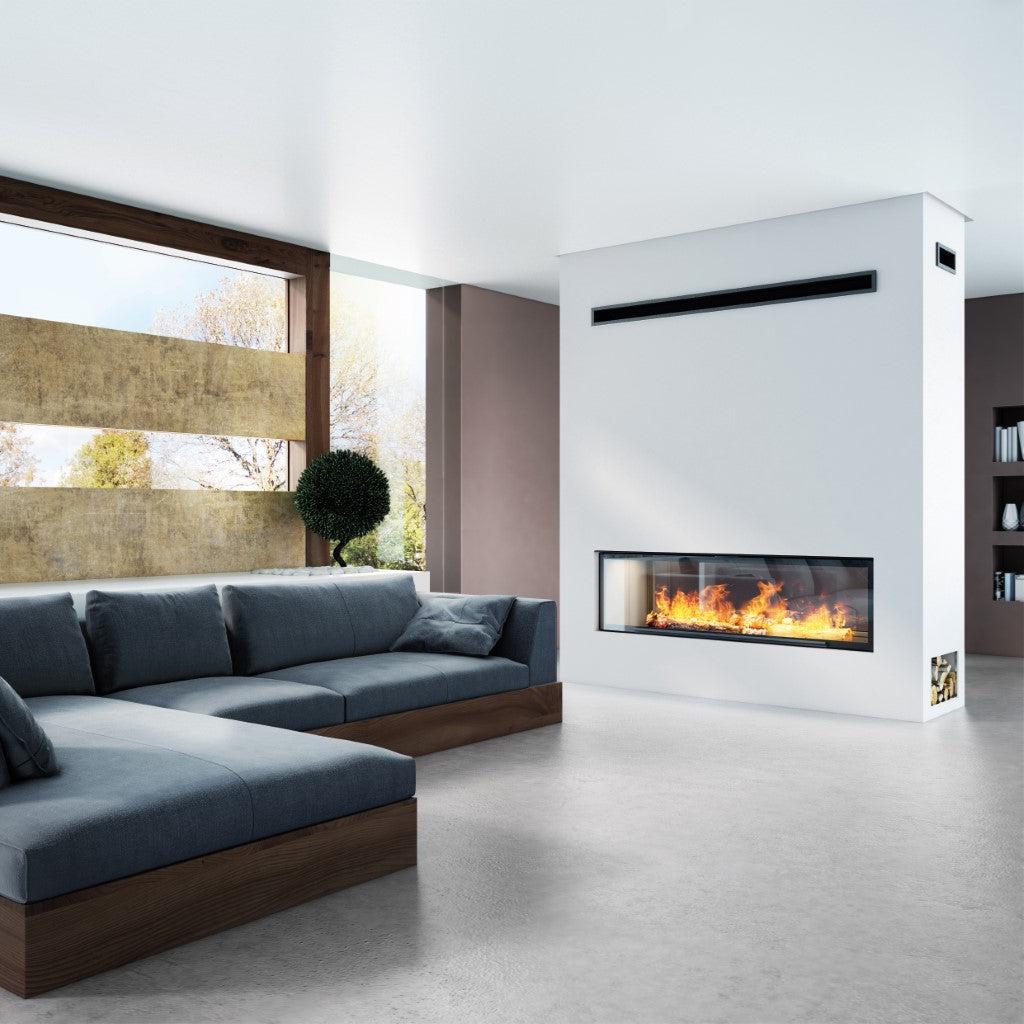

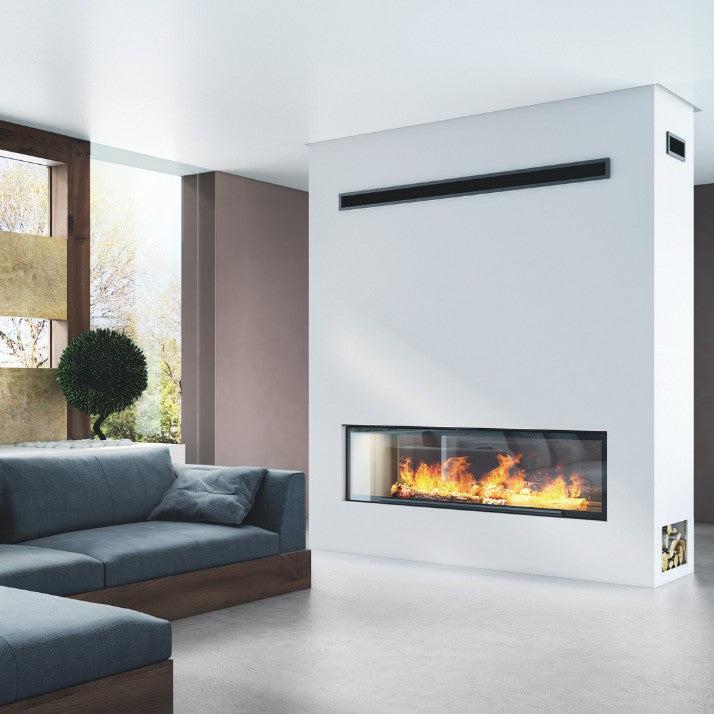

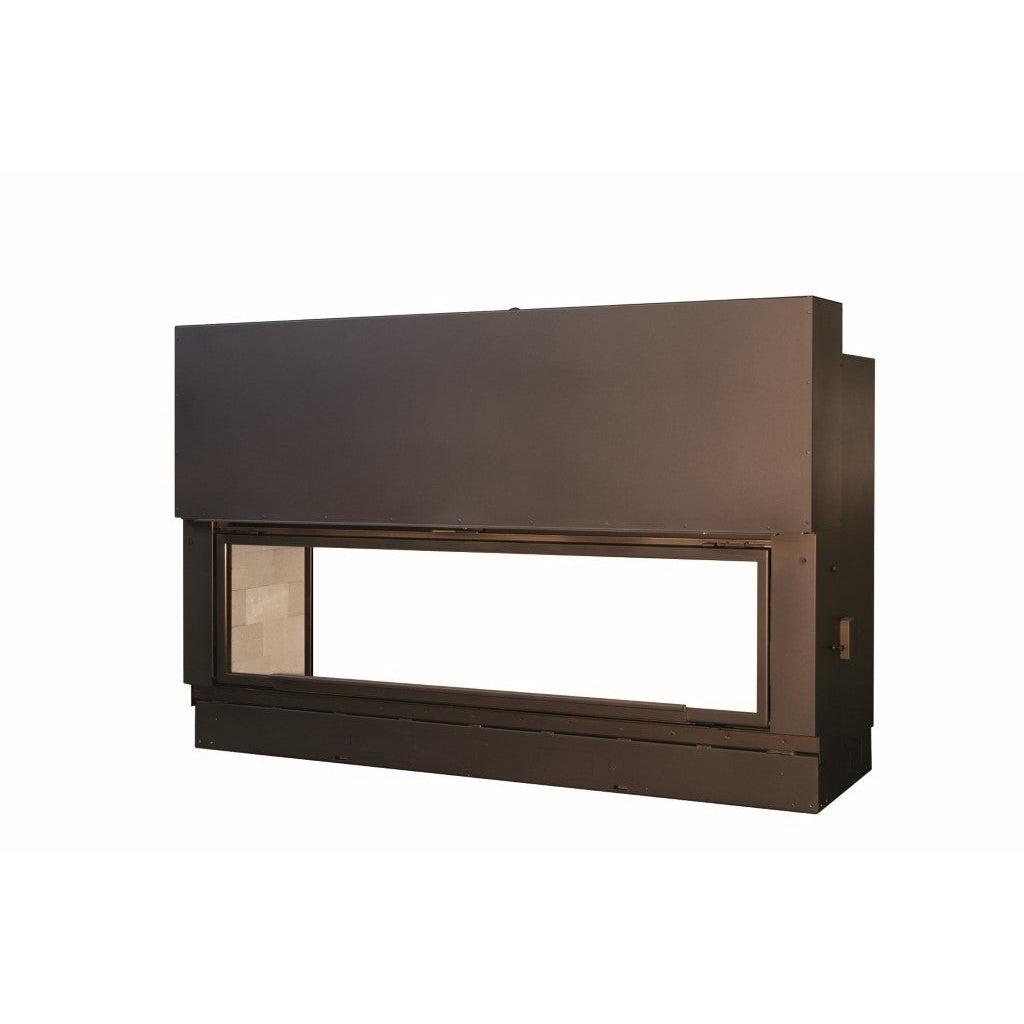

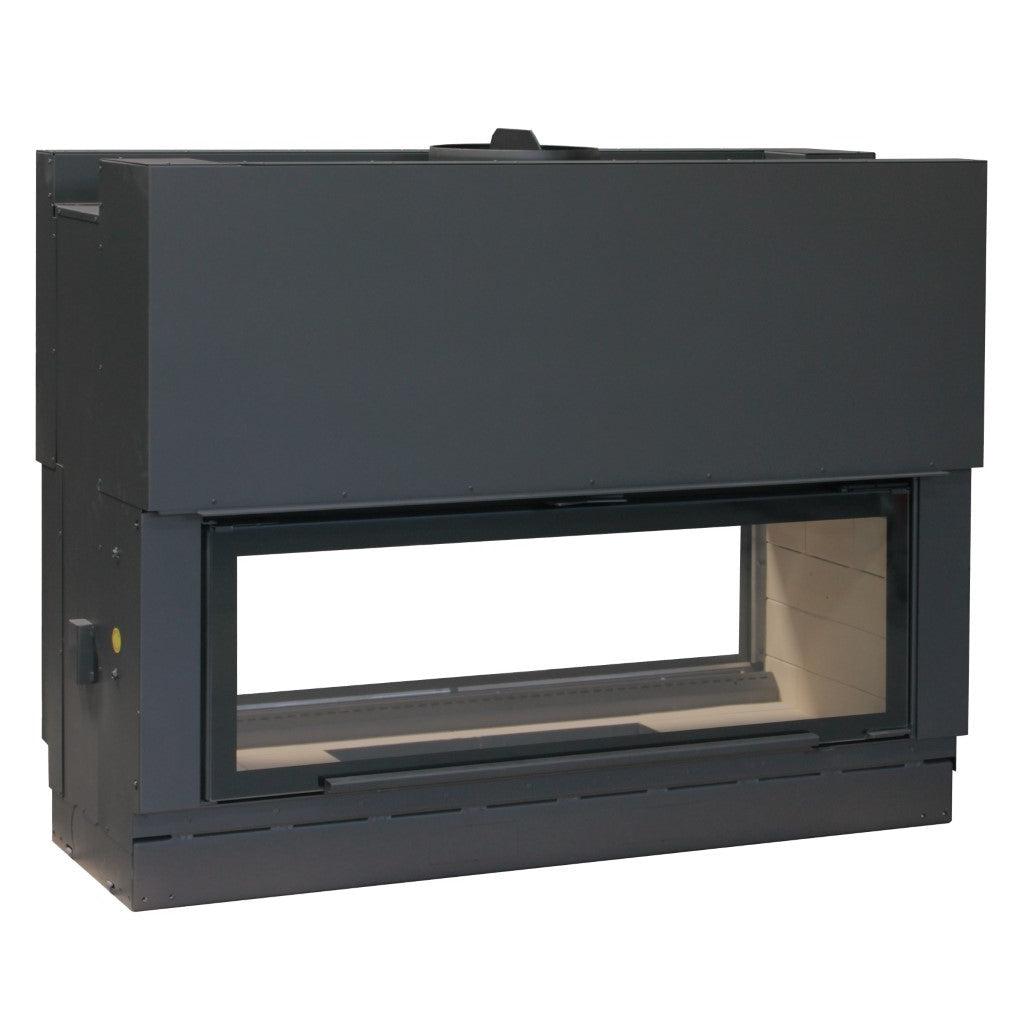

Axis H1600 XXL Panoramic Double Sided Inbuilt Wood Fireplace With Lift & Swing Door

The Axis H1600XXL DS double sided inbuilt wood fireplace takes the title for being Australia?s largest double sided inbuilt wood heater, with an unbelievable see-through 1.7m glass viewing area. With flexibility to be used as an open fireplace or slow combustion wood heater, this designer statement is sure to be a focal point in any grand space. The Axis H1600XXL DS double sided inbuilt wood fireplace features an exceptional hand-made French panoramic steel firebox with manually assembled interlocking heavy duty fire bricks that retain the heat well after the fire has dissipated.

Based in the Rh?ne-Alpes region of France, Axis fireplaces specialise in the manufacturing of designer wood fireplaces and are ranked #1 in France for their of high quality steel, advance heating technology and contemporary fireplace designs. Over the last 15 years Axis fireplaces? have been dedicated to designing and manufacturing luxury steel fireboxes using state of the art technology to laser cut all units which are then tightly mechanically welded to the frame. As a result of this craftsmanship, no warping of the firebox can ever occur.

Refractory bricks:

All Axis fireboxes are made up of interlocking bricks that are manually assembled and have been baked at 1350?. This avoids dilatation problems and encourages uniform and permanent heat accrual. The patented refractory bricks also ensure the accumulation, transmission and continuous release of heat over a superior period of time even after the fire has dissipated. During a fire in an Axis fireplace, the bricks will be heated to a temperature approximately of 600?C. When the fire dies the bricks will take around 6-10 hours to cool down, which allows Axis units to have an even larger heating capacity than most fireplaces on the market today. It is because of this that Axis fireplaces are one of the only suppliers in Australia to have a 10 year firebrick warranty, proving the longevity of these flawlessly manufactured fireplaces.

All Axis fireplaces have Triple Action Heating; RADIANT (glass), ACCUMULATION (bricks) and CONVECTION (firebox). A perfect collision of practicality and well-made contemporary design, the Axis fireplace collection features the best in fireplace performance and innovative technology.

Specifications

Material: Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

kW Output: 30kW

Heating capacity (m2): Up to 300m2*

Facade: Clean frameless design (no trim)

Glass door: Secure lift up glass door with locking mechanism or forward levering for easy cleaning

Minimum flue height: 5.4m

Flue dimensions: 300mm, 350mm, 400mm

Includes hot air transfer kit: A duct and a register

Hearth dimension: Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit: Recommended for well insulated homes

Warranty: 10 year fire brick warranty*

Weight: 530kg

Downloads

PRODUCT BROCHURE (PDF)

INSTALLATION INSTRUCTIONS (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
