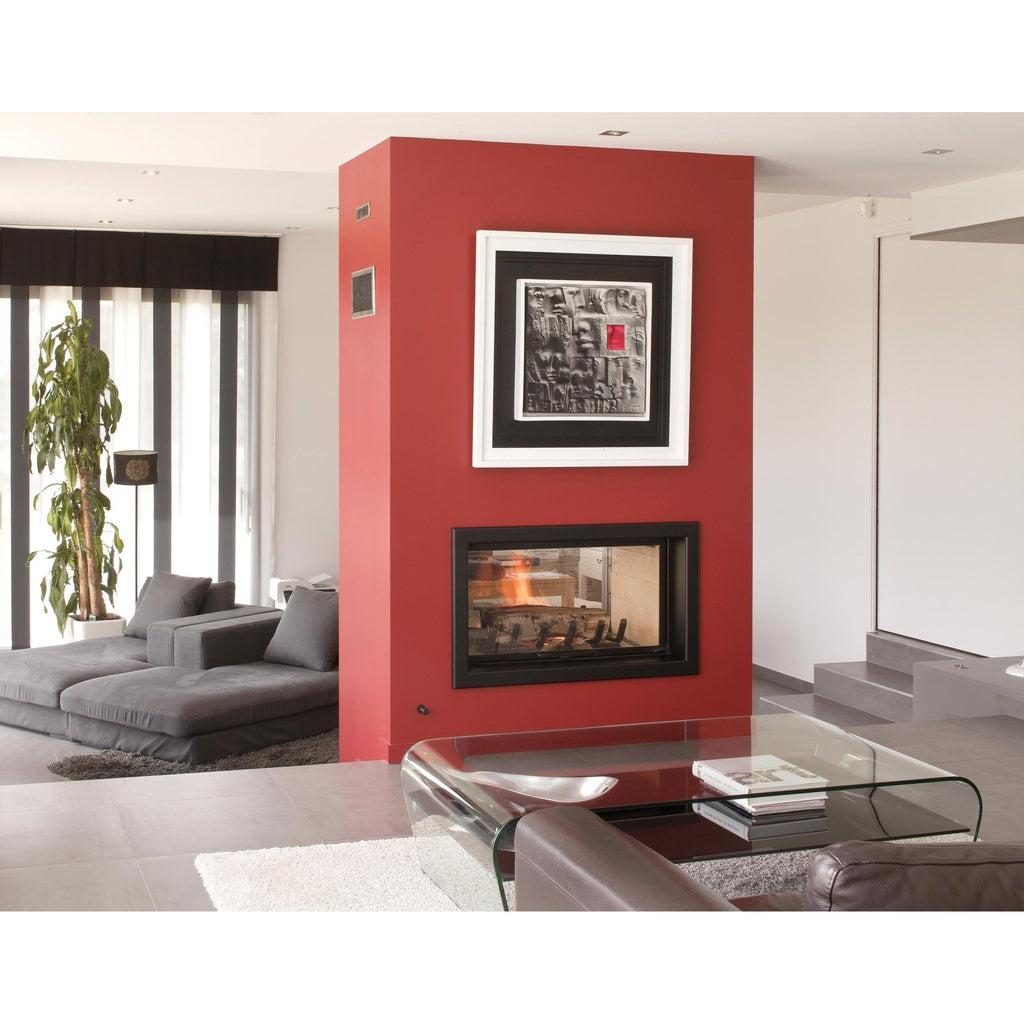

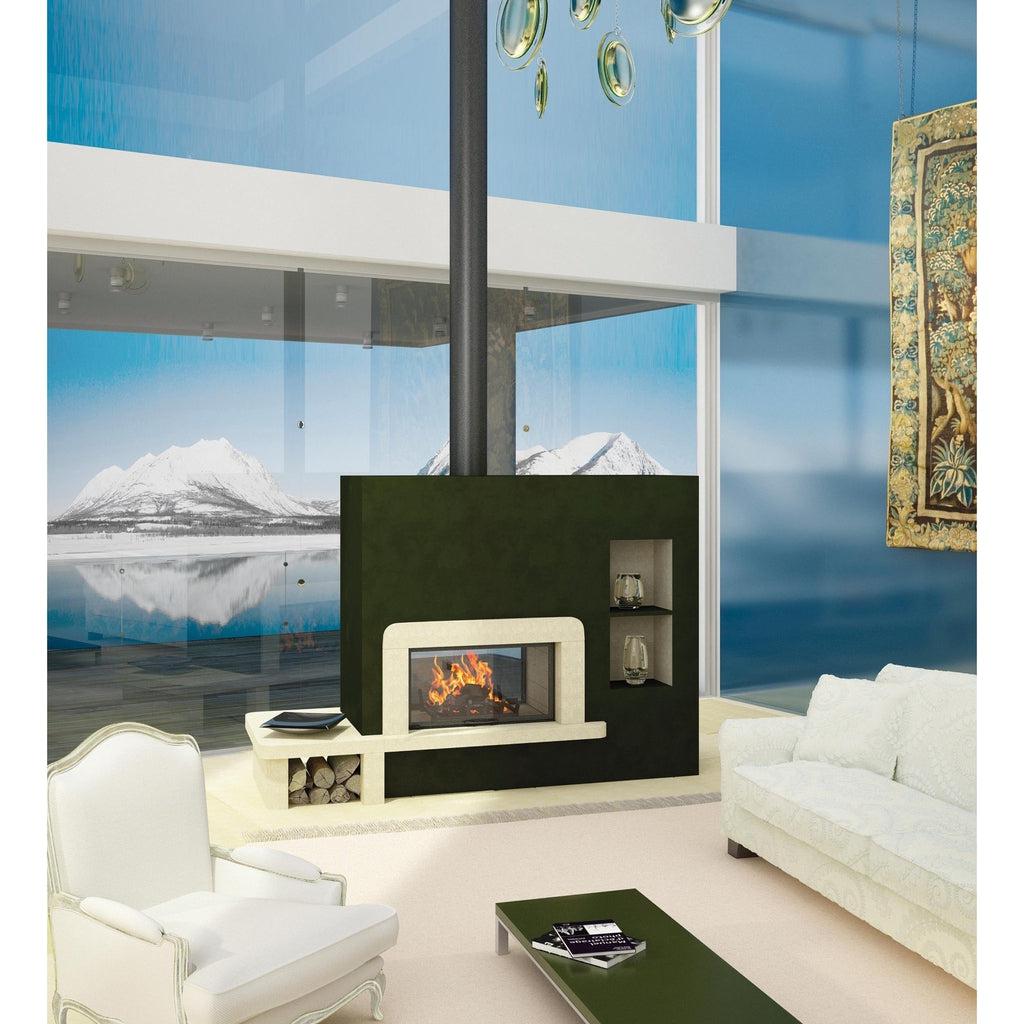

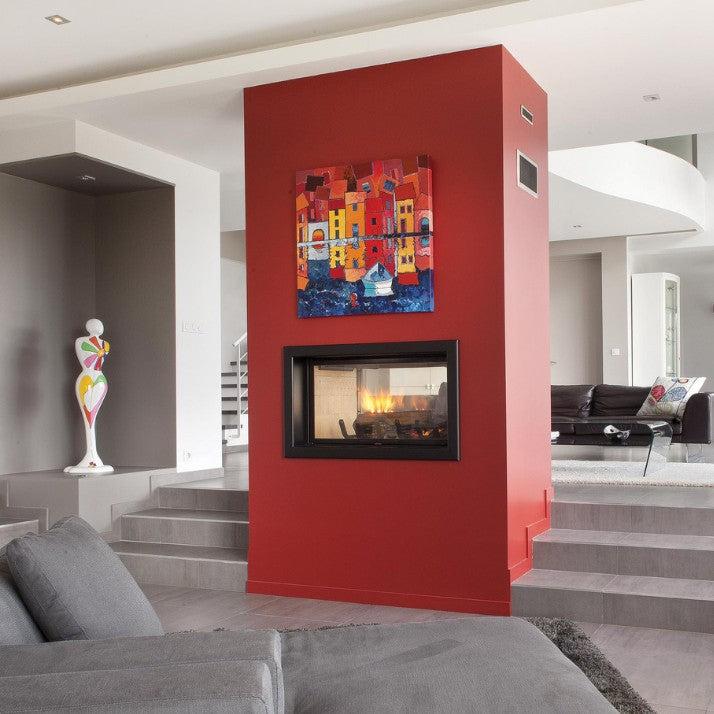

Axis H1200 DS Panoramic Double Sided Inbuilt Wood Fireplace With Lift & Swing Door

The artisan engineered Axis H1200DS double sided inbuilt wood fireplace is a French panoramic steel firebox with breath-taking sentiments and an unbelievable heating performance. View a spirited display of ambient flames that will dance continuously from this double sided masterpiece all winter long. A personal gallery awaits from any point in the room with the Axis H1200DS double sided inbuilt wood fireplace. The large glass viewing area also gives this French hand made wood heater a luxurious contemporary feel that is much sought-after.

Based in the Rh?ne-Alpes region of France, Axis fireplaces specialise in the manufacturing of designer wood fireplaces and are ranked #1 in France for their of high quality steel, advance heating technology and contemporary fireplace designs. Over the last 15 years Axis fireplaces? have been dedicated to designing and manufacturing luxury steel fireboxes using state of the art technology to laser cut all units which are then tightly mechanically welded to the frame. As a result of this craftsmanship, no warping of the firebox can ever occur.

Refractory bricks:

All Axis fireboxes are made up of interlocking bricks that are manually assembled and have been baked at 1350?. This avoids dilatation problems and encourages uniform and permanent heat accrual. The patented refractory bricks also ensure the accumulation, transmission and continuous release of heat over a superior period of time even after the fire has dissipated. During a fire in an Axis fireplace, the bricks will be heated to a temperature approximately of 600?C. When the fire dies the bricks will take around 6-10 hours to cool down, which allows Axis units to have an even larger heating capacity than most fireplaces on the market today. It is because of this that Axis fireplaces are one of the only suppliers in Australia to have a 10 year firebrick warranty, proving the longevity of these flawlessly manufactured fireplaces.

All Axis fireplaces have Triple Action Heating; RADIANT (glass), ACCUMULATION (bricks) and CONVECTION (firebox). A perfect collision of practicality and well-made contemporary design, the Axis fireplace collection features the best in fireplace performance and innovative technology.

Specifications

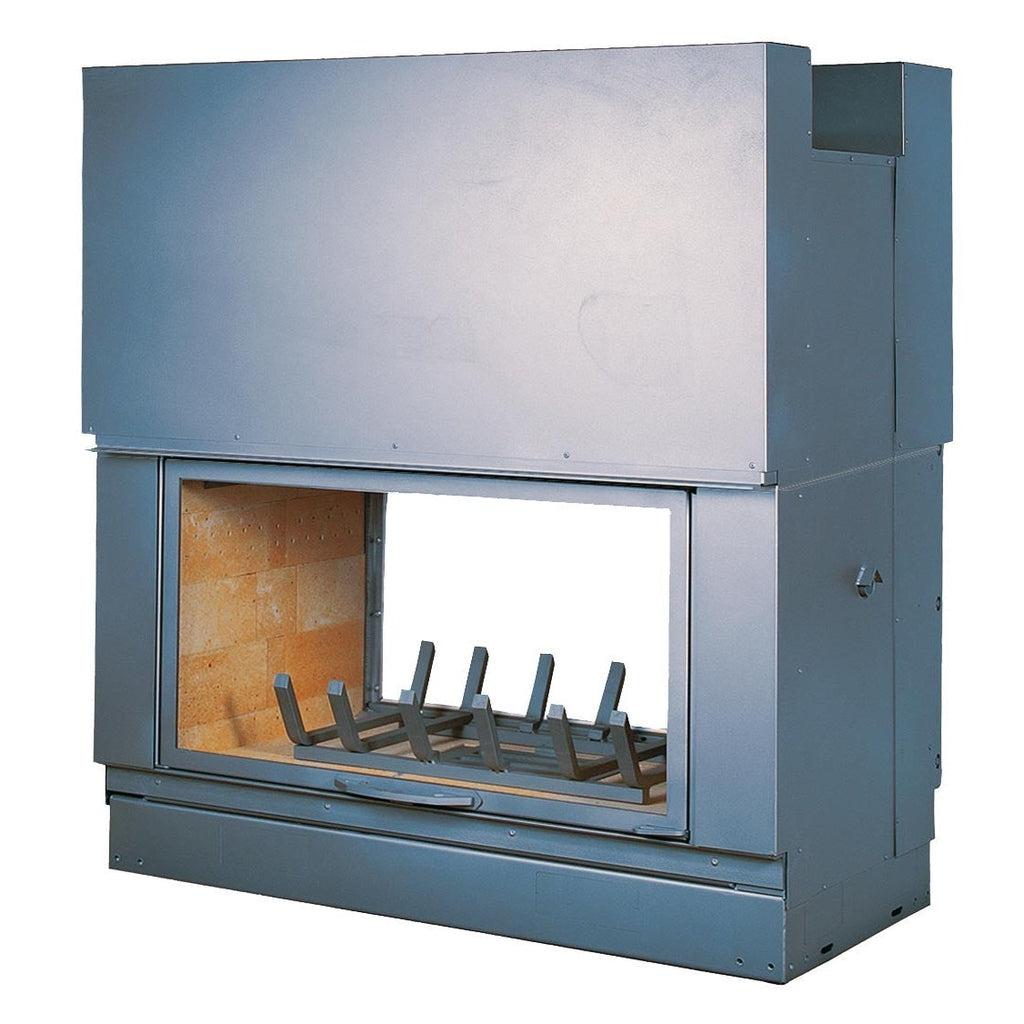

Material: Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

kW Output: 20kW

Heating capacity (m2): Up to 200m2*

Facade: Clean frameless design (no trim)

Glass door: Swing and secure lift up glass door with locking mechanism

Minimum flue height: 5.4m

Flue dimensions: 250mm, 300mm, 350mm

Includes hot air transfer kit: A duct and a register

Hearth dimension: Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit: Recommended for well insulated homes

Warranty: 10 year fire brick warranty*

Weight: 380kg

Downloads

PRODUCT BROCHURE (PDF)

INSTALLATION INSTRUCTIONS (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
