    AXIS H1200 3V - Triple Sided Wood Fireplace

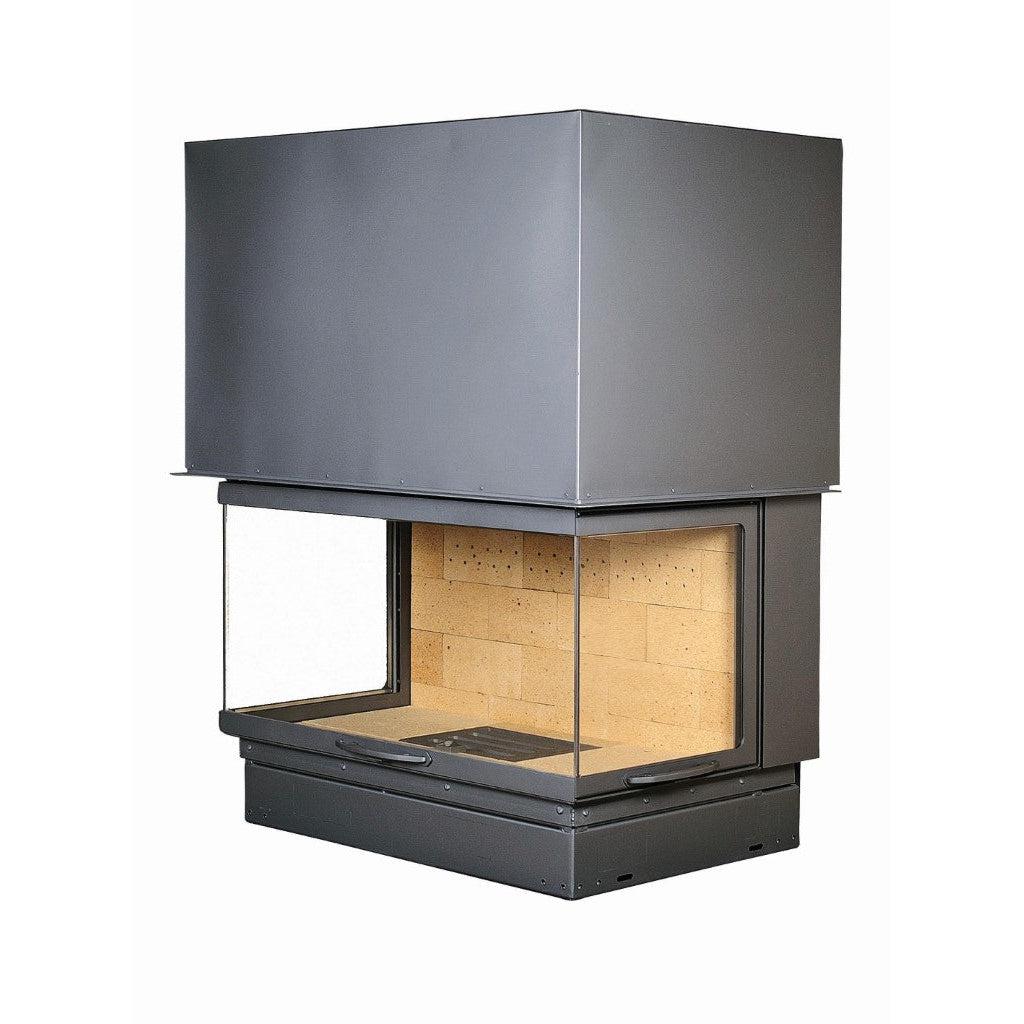

    Spectacular from any angle, the French designed and made Axis H1200 3V three sided wood fireplace will create an unsurpassed ambience with its unique characteristics of being either an open or slow combustion heater and its unconventional glass viewing area. With it?s high quality three sided panoramic steel firebox and elegant glass doors, the luxurious Axis H1200 3V three sided wood fireplace is sure to be a real show stopper in any designer space.

    Based in the Rh?ne-Alpes region of France, Axis fireplaces specialise in the manufacturing of designer wood fireplaces and are ranked #1 in France for their of high quality steel, advance heating technology and contemporary fireplace designs. Over the last 15 years Axis fireplaces? have been dedicated to designing and manufacturing luxury steel fireboxes using state of the art technology to laser cut all units which are then tightly mechanically welded to the frame. As a result of this craftsmanship, no warping of the firebox can ever occur.

    DAFS (Double Air Flow System):

    The Axis H1200 3V inbuilt wood fireplace is equipped with DAFS technology with the aim to inject oxygen at a determined level inside of the combustion chamber. The supply of new oxygen will burn the gases and smoke that has not yet been burnt and prevent them from being released into the flue system. The advantages of this; a longer fire term, cleaner glass and bricks, also total combustion of the fire wood.

    Refractory bricks:

    All Axis fireboxes are made up of interlocking bricks that are manually assembled and have been baked at 1350?. This avoids dilatation problems and encourages uniform and permanent heat accrual. The patented refractory bricks also ensure the accumulation, transmission and continuous release of heat over a superior period of time even after the fire has dissipated. During a fire in an Axis fireplace, the bricks will be heated to a temperature approximately of 600?C. When the fire dies the bricks will take around 6-10 hours to cool down, which allows Axis units to have an even larger heating capacity than most fireplaces on the market today. It is because of this that Axis fireplaces are one of the only suppliers in Australia to have a 10 year firebrick warranty, proving the longevity of these flawlessly manufactured fireplaces.

    All Axis fireplaces have Triple Action Heating; RADIANT (glass), ACCUMULATION (bricks) and CONVECTION (firebox). A perfect collision of practicality and well-made contemporary design, the Axis fireplace collection features the best in fireplace performance and innovative technology.

    Specifications

    Material: Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

    kW Output: 20kW

    Heating capacity (m2): Up to 200m2*

    Facade: Clean frameless design (no trim)

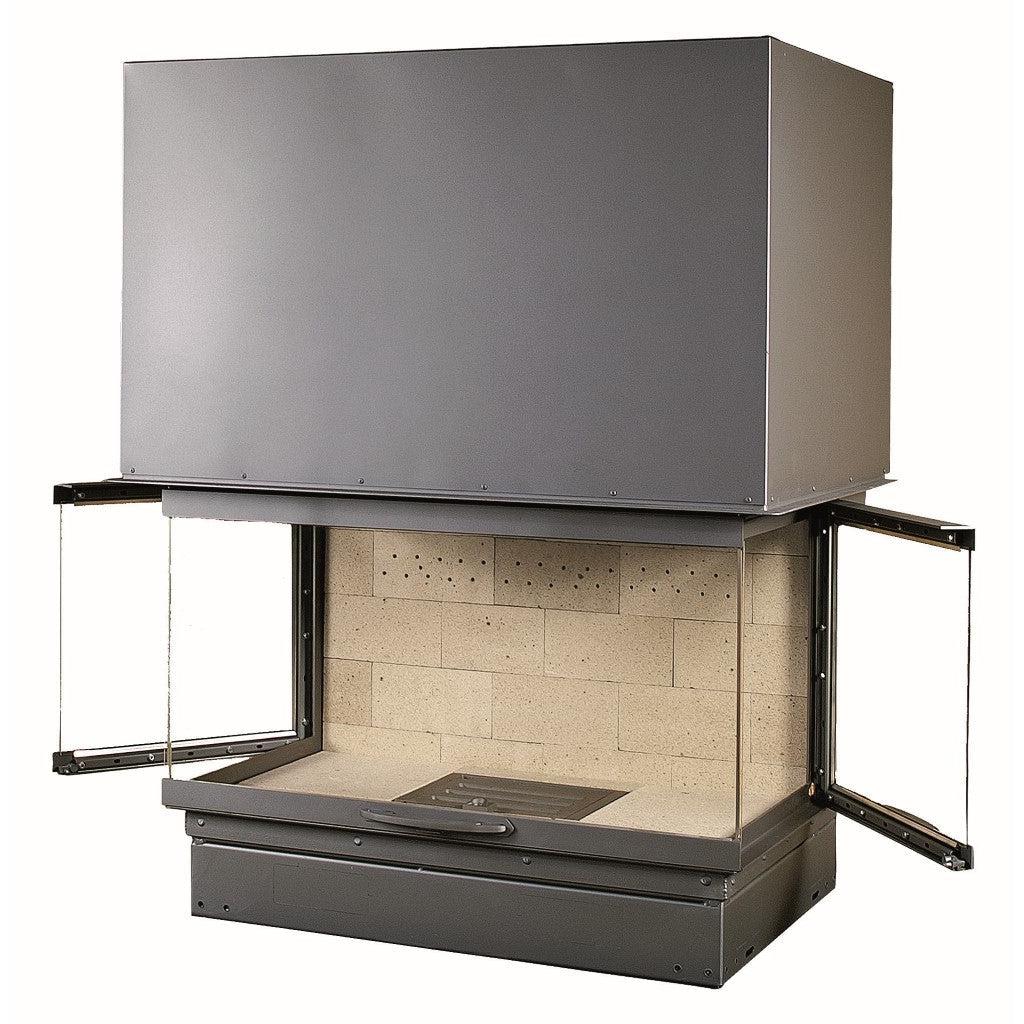

    Glass door: Swing and secure lift up glass door with locking mechanism

    Minimum flue height: 5.4m

    Flue dimensions: 250mm, 300mm, 350mm

    Includes hot air transfer kit: A duct and a register

    Hearth dimension: Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

    Outside air kit: Recommended for well insulated homes

    Warranty: 10 year fire brick warranty*

    Weight: 380kg

    Downloads

    PRODUCT BROCHURE (PDF)

    INSTALLATION INSTRUCTIONS (PDF)

    Installation

    Need someone to install your fireplace? Find out how we can help.

    Flueing and Accessories

    • Flueing or accessories are not included in the price
    • Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
