13kW
Nominal Power Output
195-375m2
Heatable Area
4kg/h
Hourly Consumption

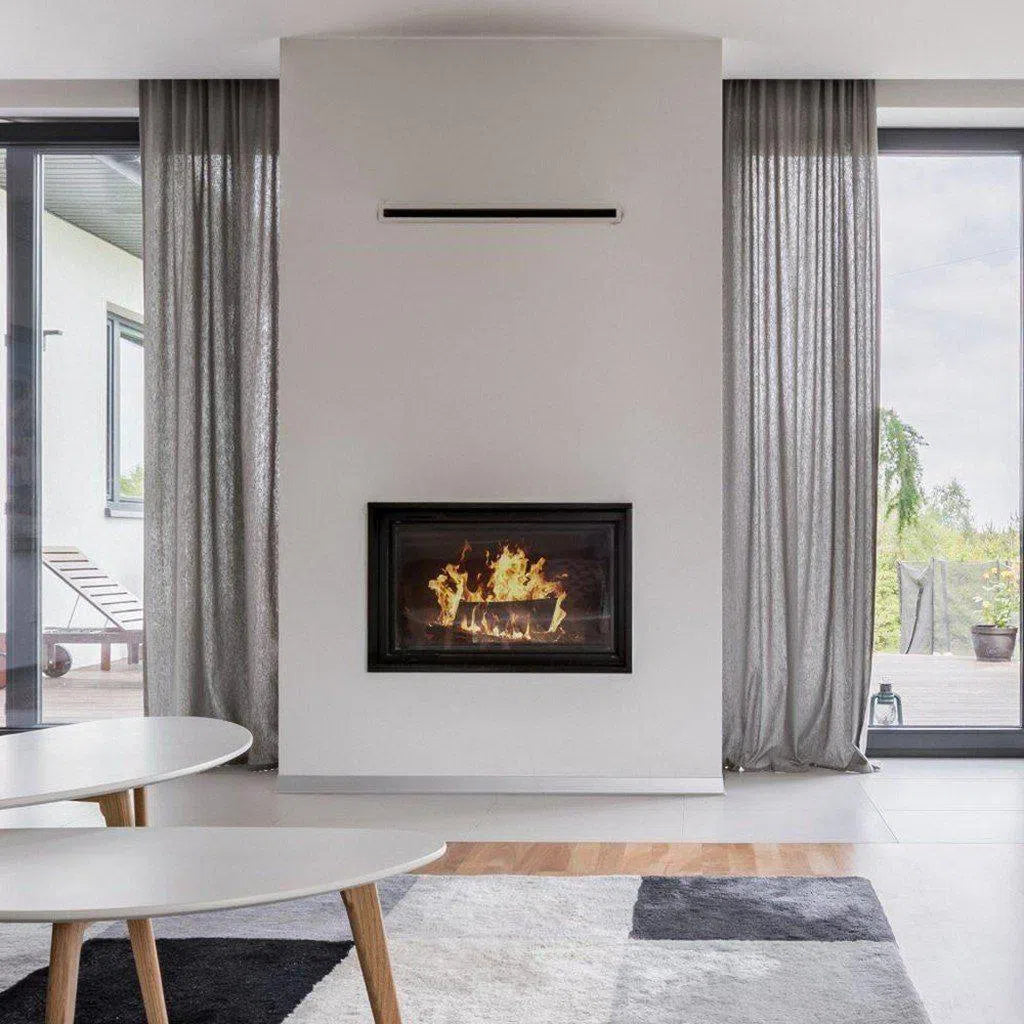

Competitively priced yet a powerful performer boasting premium looks and cutting edge technology, this fireplace's large glass area provides a calming ambience when viewing the fire.
Features
- Deep focus for aesthetic burning
- Primary and Secondary Air / Three-Stage Combustion
- Hygienically safe ecological varnish
- Possibility of air supply for combustion
from external environment - Height-adjustable position by means of set screws
- High glass purity when burning
- Preparation for automatic combustion control
- All-sand construction of the fireplace insert
before surface treatment - Automatic combustion control possible
Specifications
Door Dimensions (w h) : 740/480mm
Overall Dimensions (w h d) : 780/1320-1450/535mm
Weight: 185-300kg
Flue Outlet: 8"
Air Supply Duct: 125mm
Minimum Hearth Dimensions (w d) : 1100/550mm
Log Length/Diameter: 50/35cm
Average Wood Consumption: 4kg/hr
Average Efficiency EU: 80%
Nominal Heat Output: 13kW
Maximum Heat Output: 25 kW
Door Opening System: Side, Lift Option
Manufacturer: Kobok
Flue Options
8" Insulated Room Sealed 4m Flue Kit
Downloads
PRODUCT BROCHURE (PDF)
INSTALLATION & OPERATING MANUAL (PDF)
Installation
Need someone to install your fireplace? Find out how we can help.
Flueing and Accessories
- Flueing or accessories are not included in the price
- Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
