    • settings SKU: CASADH85I

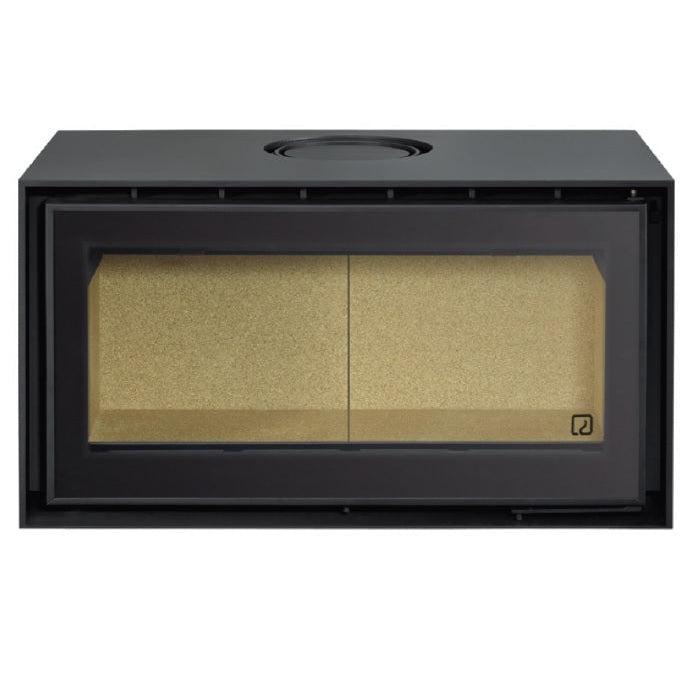

    ADF Linea 85 Insert Wood Fireplace

    $3,955.00
    Unit price  per

    13.1kW

    Nominal Power Output

    Up to 200sqm

    Heatable Area

    0.8g/kg

    Emissions

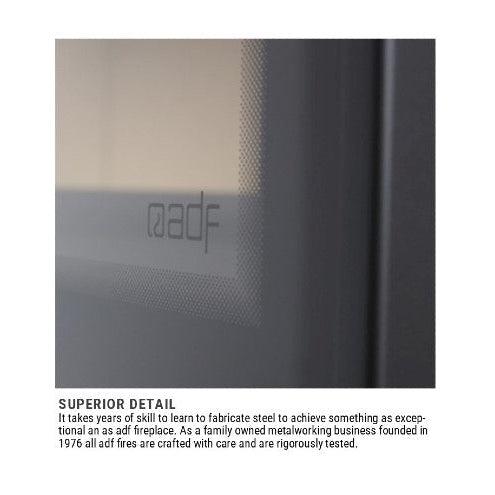

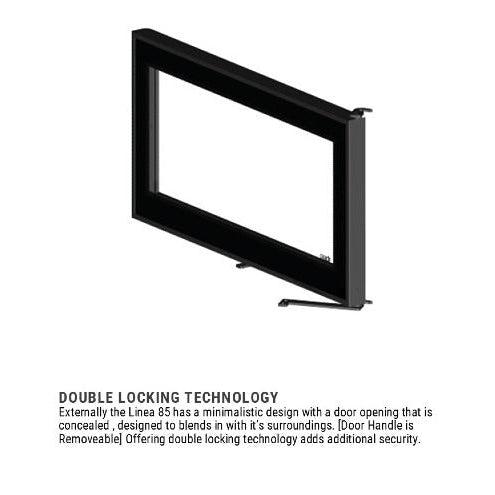

    User experience is at the forefront of this fireplace. Every minute detail  is engineered to provide you with the ultimate in fireside luxury.   Externally the ADF Linea 85 has a minimalist design, with clean lines,  and crisp edges, that will fit perfectly with any design style. It takes years of skill to learn how to fabricate steel to achieve something as  exceptional as an ADF fireplace. As a family-owned metalworking business founded in 1976, all ADF fires are crafted with care and are rigorously tested to make them a pleasure to own and operate, the Linea 85 has  also been tested to adhere to the strict Australia Standards (AS2918 /  AS4012/4013).

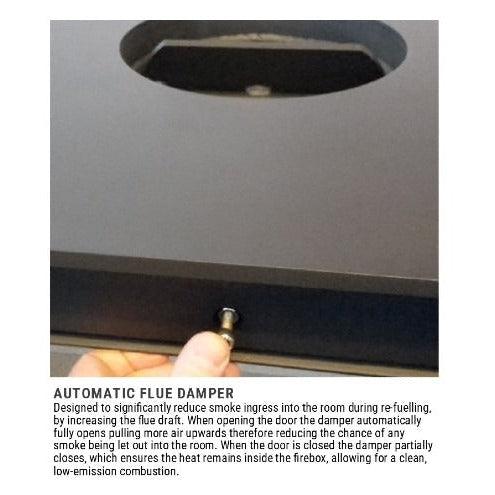

    The  fire is not only eye-catching, it operates beautifully. Internally an  automatic flue damper is designed to significantly reduce smoke ingress  into the room during refueling, by increasing the flue draft. When  opening the door the damper automatically fully opens pulling more air  upwards therefore reducing the chance of any smoke being let out into  the room. When the door is closed the damper partially closes, which  ensures the heat remains inside the firebox. This keeps your house at  optimal temperatures and your wood consumption to a minimum.

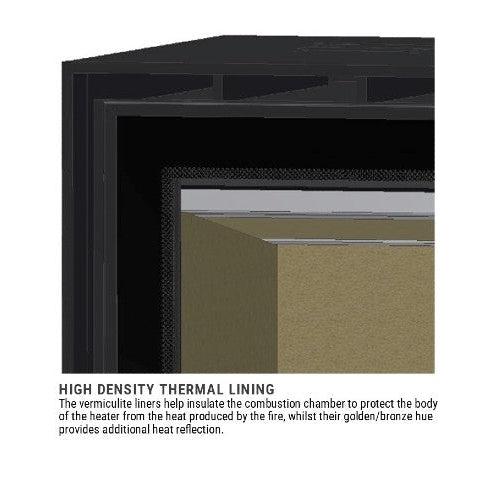

    A high density thermal lining manufactured from vermiculite helps  insulate the combustion chamber to protect the body from the heat  produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

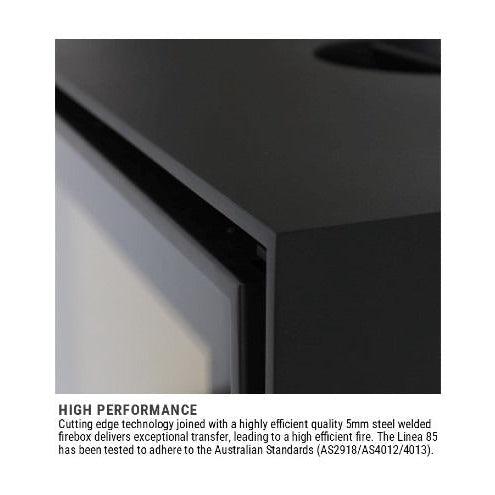

    The firebox is constructed using high-strength 5mm quality steel and feature a single and easy-to-use air control, and air flow technology. By  controlling the airflow within the firebox, the glass is kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat  output, and air flow technology also ensures that any solid particles  and volatile gases produced by the fire are re-ignited and burnt off  before they can re-enter the atmosphere.

    Providing an impressive average heat output of 13.1kW, the ADF Linea 85 is ideal for heating areas from 150-200m².

    Specifications

    Weight - 150kg
    Heat Output (Nominal) - 13.1kW
    Approx. heat area - 150-200 m2
    Efficiency - 72%
    Emissions - 0.8g/Kg

    Flue Options

    8" Insulated Room Sealed 4m Flue Kit

    8" Zero Clearance Flue Kit (Required for Zero Clearance Box)

    Accessories

    Zero Clearance Box

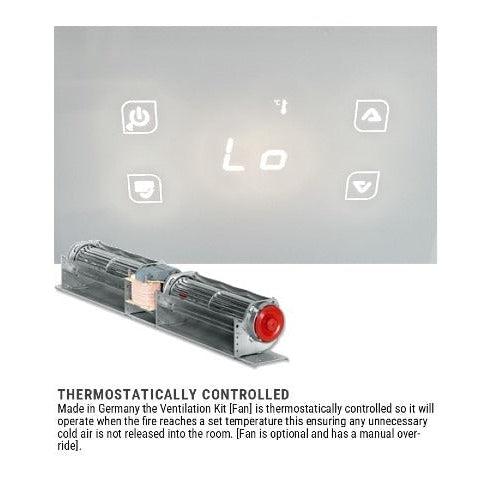

    Fan

    Downloads

    PRODUCT BROCHURE (PDF)

    INSTALLATION & OPERATION MANUAL (PDF)

    ZERO CLEARANCE BOX MANUAL (PDF)

    Installation

    Need someone to install your fireplace? Find out how we can help.

    Flueing and Accessories

    • Flueing or accessories are not included in the price
    • Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
