Nominal Power Output
Up to 200sqm

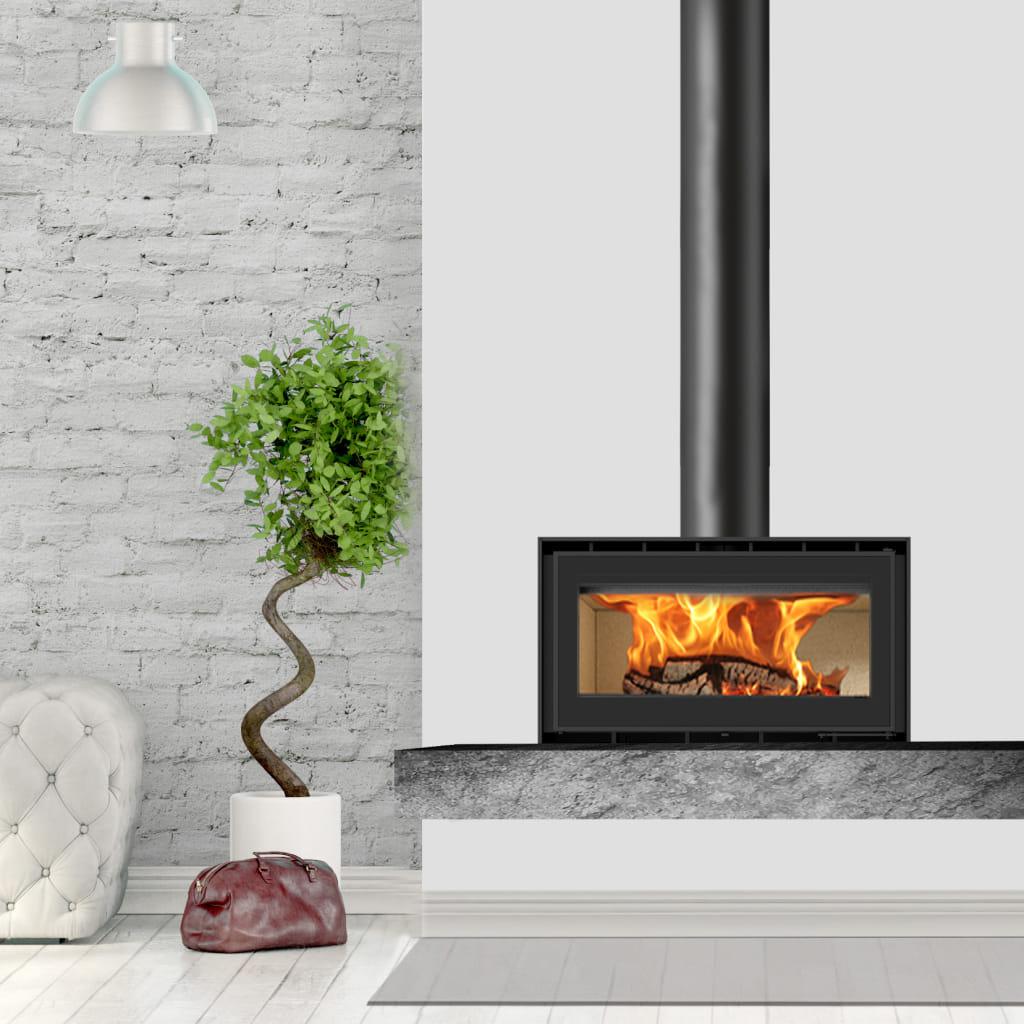

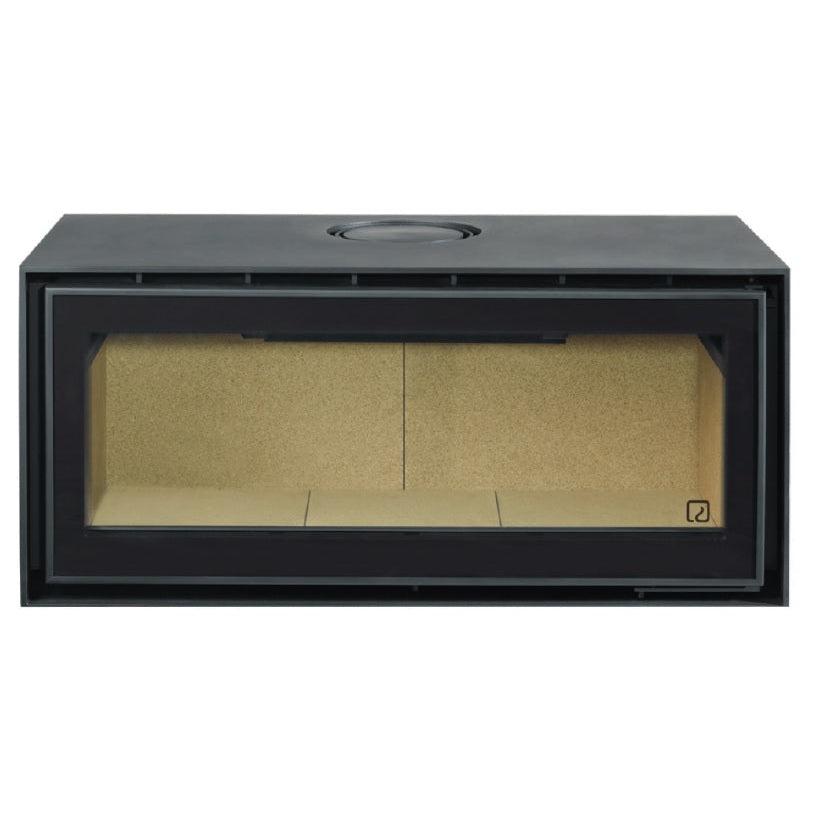

Painstakingly engineered and timelessly designed the ADF Linea 85 B is a result of ADF’s technical expertise and advancement in the metalworking industry.
This Linea 85 produces a magnificent rolling flame and ample warmth, with an average heat output of 13.0kW, ideal for heating areas from 150-200m².

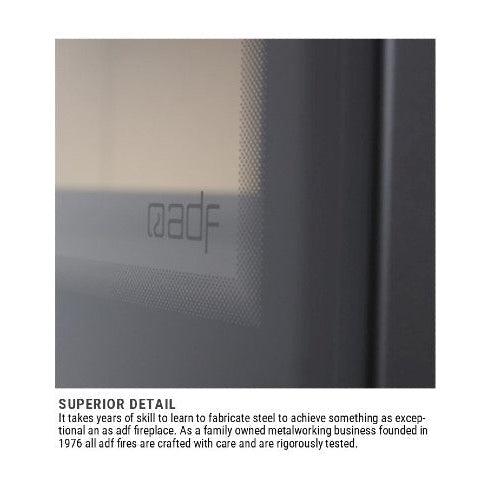

The user experience is at the forefront of this fireplace. Every minute detail is engineered to provide you with the ultimate in fireside luxury. Externally the ADF Linea 85 B has a minimalist design, with clean lines, and crisp edges, that will fit perfectly with any design style. It takes years of skill to learn how to fabricate steel to achieve something as exceptional as an ADF fireplace. Their state-of-the art facility hosts a team of engineers and craftspeople, all dedicated to creating original and captivating fireplaces.
As a family-owned metalworking business founded in 1976, all ADF fires are crafted with care and are rigorously tested to make them a pleasure to own and operate, the Linea 85 B has also been tested to adhere to the strict Australia Standards (AS2918 / AS4012/4013).

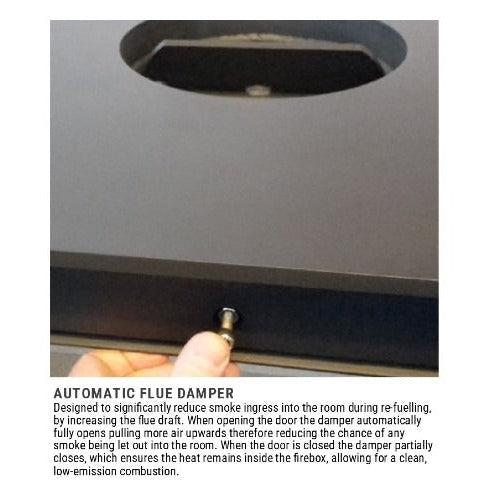

The fire is not only eye-catching, it operates beautifully. Internally an automatic flue damper is designed to significantly reduce smoke ingress into the room during refueling, by increasing the flue draft. When opening the door the damper automatically fully opens pulling more air upwards therefore reducing the chance of any smoke being let out into the room. When the door is closed the damper partially closes, which ensures the heat remains inside the firebox. This keeps your house at optimal temperatures and your wood consumption to a minimum.

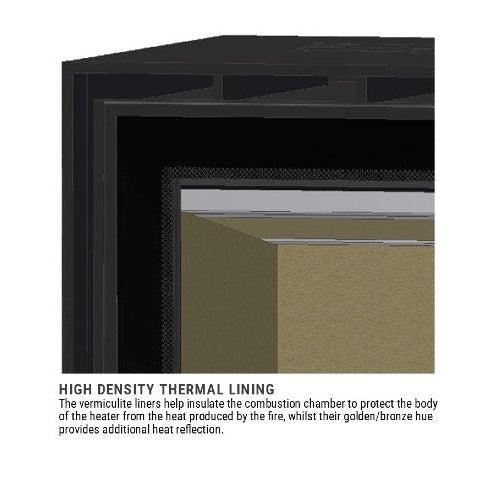

A high density thermal lining manufactured from vermiculite helps insulate the combustion chamber to protect the body from the heat produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

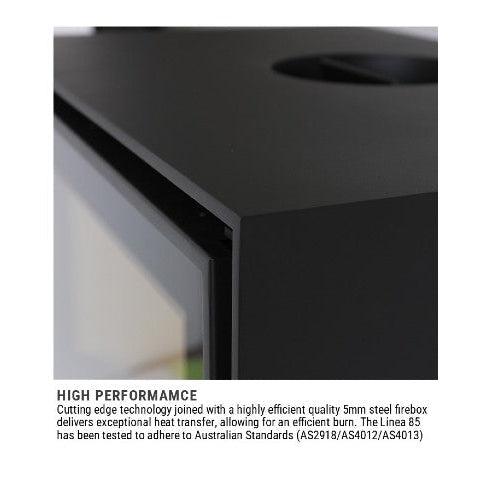

The firebox is constructed using high-strength 5mm quality steel and feature a single and easy-to-use air control, and air flow technology. By controlling the airflow within the firebox, the glass can be kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat output, and air flow technology also ensures that any solid particles and volatile gases produced by the fire are re-ignited and burnt off before they can re-enter the atmosphere.
Weight - 150kg
Heat Output (Nominal) - 13.0kW
Approx. heat area - 150-200 m2
Efficiency - 72%
Emissions - 0.8g/Kg
8" Full Triple Drop Box Flue Kit 4m plus 8" Flue Shield
PRODUCT BROCHURE (PDF)
INSTALLATION & OPERATION MANUAL (PDF)
