17.0kW
Nominal Power Output
Up to 250sqm
Heatable Area
1.2g/kg
Emissions
With it’s generous height and unadorned surfaces the Linea 100 L generates an unrivalled picture of the rolling flames, and ample warmth the ADF Linea 100 L has an impressive average heat output of 17.0kW, ideal for heating areas from 200-250m².
Painstakingly engineered and timelessly designed the ADF Linea 100 L is a result of ADF’s technical expertise and advancement in the metalworking industry.

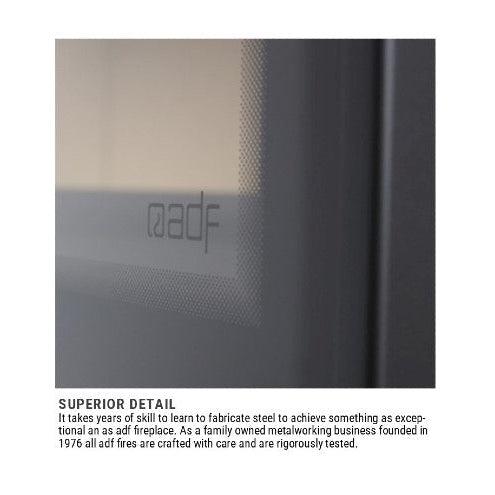

The user experience is at the forefront of this fireplace. Every minute detail is engineered to provide you with the ultimate in fireside luxury. Externally the ADF Linea 100 L has a minimalist design, with clean lines, and crisp edges, that will fit perfectly with any design style. It takes years of skill to learn how to fabricate steel to achieve something as exceptional as an ADF fireplace. Their state-of-the art facility hosts a team of engineers and craftspeople, all dedicated to creating original and captivating fireplaces.
As a family-owned metalworking business founded in 1976, all ADF fires are crafted with care and are rigorously tested to make them a pleasure to own and operate, the Linea 100 L has also been tested to adhere to the strict Australia Standards (AS2918 / AS4012/4013).

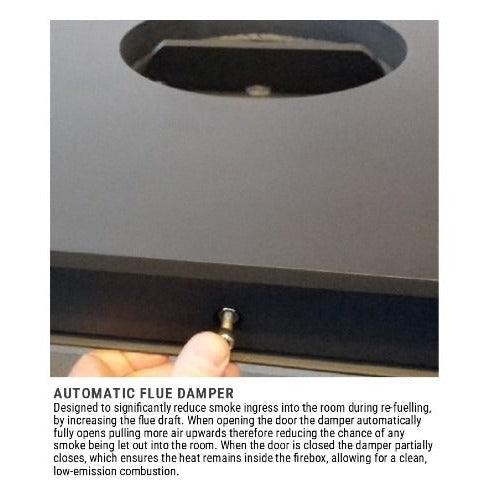

The fire is not only eye-catching, it operates beautifully. Internally an automatic flue damper is designed to significantly reduce smoke ingress into the room during refueling, by increasing the flue draft. When opening the door the damper automatically fully opens pulling more air upwards therefore reducing the chance of any smoke being let out into the room. When the door is closed the damper partially closes, which ensures the heat remains inside the firebox. This keeps your house at optimal temperatures and your wood consumption to a minimum.

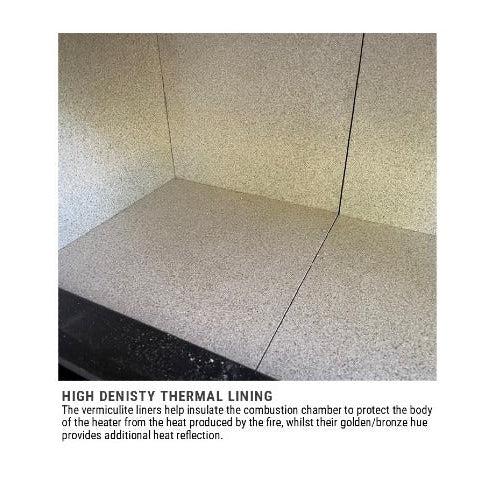

A high density thermal lining manufactured from vermiculite helps insulate the combustion chamber to protect the body from the heat produced by the fire, whilst their golden/bronze hue provides additional heat reflection.

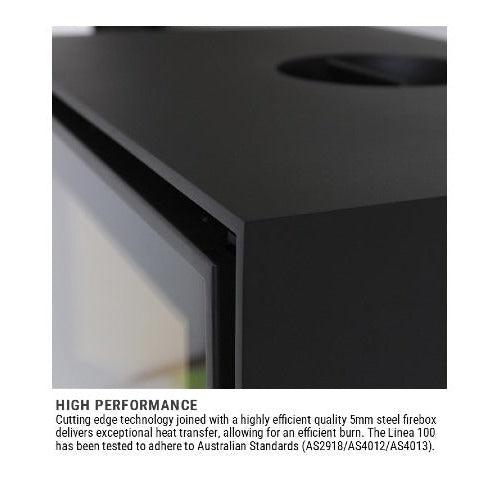

The firebox and stand is constructed using high-strength 5mm quality steel and features a single and easy-to-use air control, and air flow technology. By controlling the airflow within the firebox, the glass can be kept clear from soot, thus ensuring an uninterrupted view of the flames. The clean burn system introduces pre-heated combustion air to increase the heat output, and air flow technology also ensures that any solid particles and volatile gases produced by the fire are re-ignited and burnt off before they can re-enter the atmosphere.
Specifications
Weight - 250kg
Heat Output (Nominal) - 17.0kW
Approx. heat area - 200-250 m2
Efficiency - 64%
Emissions - 1.2g/Kg
Flue Options
8" Insulated Room Sealed 4m Flue Kit
Downloads
PRODUCT BROCHURE (PDF)
INSTALLATION & OPERATION MANUAL (PDF)
Installation
Need someone to install your fireplace? Find out how we can help.
Flueing and Accessories
- Flueing or accessories are not included in the price
- Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
