Seguin Visio 8 Plus Wood Fireplace With Swing Door, Lift, Black Line Glass & Brick Lining

You’ll never yearn again for complete harmony in your interior space once attaining the Seguin Visio 8 Plus Cheminee Fireplace. Made in France and constructed with pure cast iron, this classic fire box with contemporary black line printed glass, equipped with the Seguin air wash system that keeps the glass clean, you’ll be wanting to stay next to your new Seguin Visio 8 Plus Cheminee Fireplace all winter long.

Based in the heart of Auvergne, France, Seguin Duteriez fireplaces have been renowned for producing some of Europe’s most revolutionary and sought-after range of elite fireplace products for over 30 years. Artisan engineered and with the use of exclusive materials, Seguin fireplaces are manufactured with 100% pure cast iron and are highly regarding for their durability and increased heating output.

DAFS (Double Air Flow System):

Majority of Seguin wood fireplaces are equipped with DAFS technology with the aim to inject oxygen at a determined level inside of the combustion chamber. The supply of new oxygen will burn the gases and smoke that has not yet been burnt and prevent them from being released into the flue system. The advantages of this; a longer fire term, cleaner glass, also total combustion of the firewood.

With an average cast iron thickness of 10mm (compared to others that are 4-6mm), these cast iron cheminee fireplaces are well known for their heat retention even after the fire has dissipated, allowing for a longer lasting heat well into those colder nights. All Seguin cast iron fireboxes come with a damper, air wash system, fire grate and ash pan as standard and thanks to the choice of high-quality raw material Seguin cast iron cheminee fireboxes are guaranteed for 10 years.

Specifications

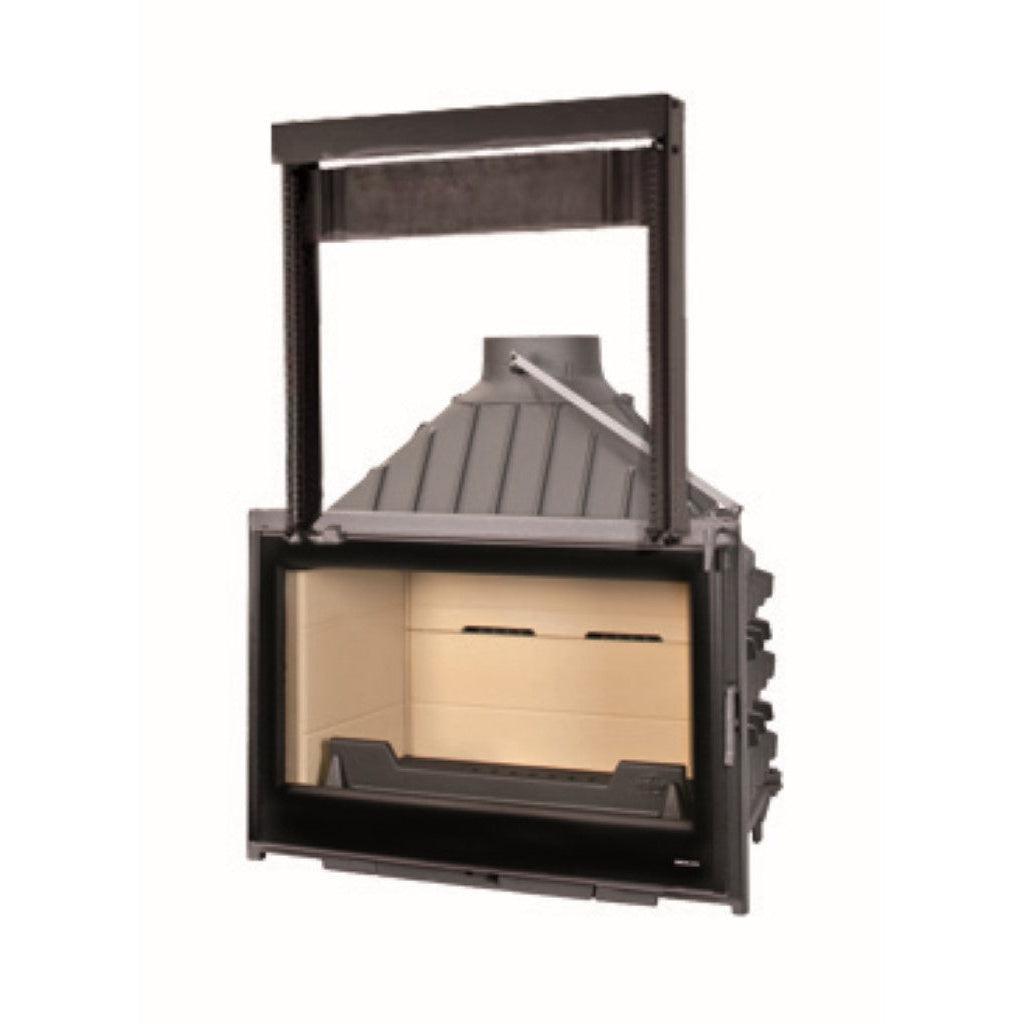

Material: 100% pure cast iron firebox with internal refractory ceramic lining and glass door

kW Output: 27.8kW

Heating capacity (m2): Up to 240-340m2*

Facade: Clean frameless design (no trim)

Glass door: Secure swing door and lift up door with locking mechanism and black line printed edging around glass

Minimum flue height: 4.5m

Flue dimensions: 200mm, 250mm, 300mm

Includes hot air transfer kit: A duct and a register

Hearth dimension: Minimum 500mm in front of any part of the fireplace, 250 either side and 75mm thick

Outside air kit: Recommended for well insulated homes

Weight: 220kg

Downloads

PRODUCT BROCHURE (PDF)

INSTALLATION INSTRUCTIONS (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirements
